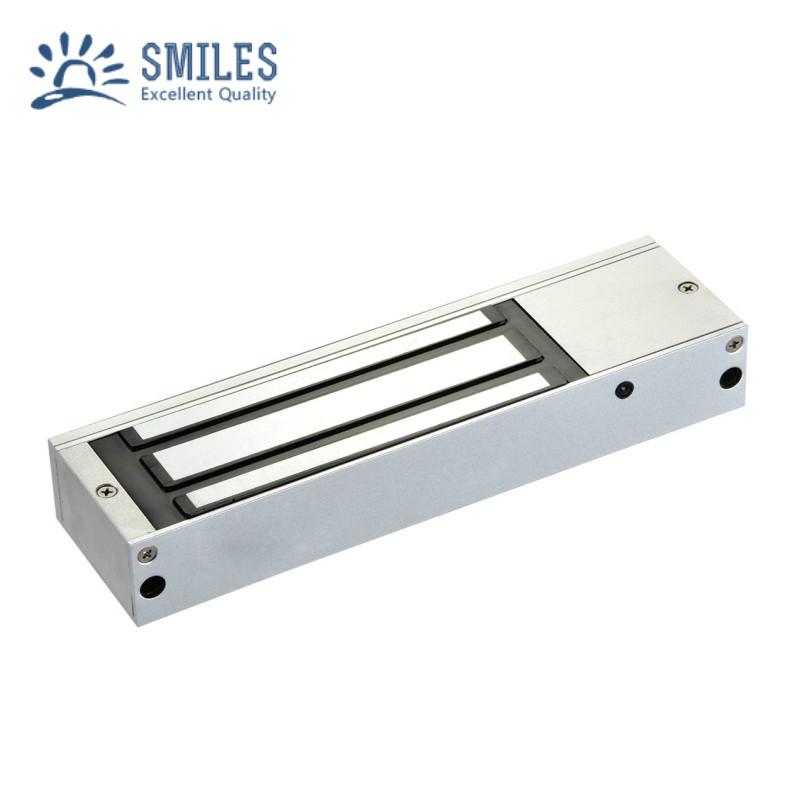

1200LBS/500KG Electric Magnetic lock For Single Door
Can be used with different doors .Special anti-residual magnetism designed makes the access control automation safer and electric lock more durable.
Holding force:1200lbs/500KG
Specification
Product Name : 1200LBS/500KG Embedded Electric Door Magnetic lock
Lock Size: 265Lx72Wx40H(mm)

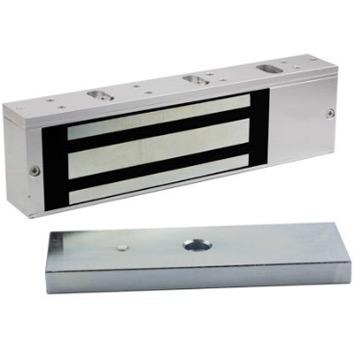

Armature Plate Dimension: 185Lx60Wx13H(mm)
Holding Force: 500KG(1200LBS)
Input Voltage: DC12V (Optional DC24V)
Current: 12V/500mA(±10%) ; 24V/250mA(±10%)
Suitable: Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp: ≤+20℃
Operating Temp: -20℃~+55℃(-4—131°F)
Humidity: 0~90%(non-condensing)
Cover Finish: Anodized aluminum
Lock Finish: Zinc
Armature Plate Finish: Zinc
Unit Weight: 4.5KG
