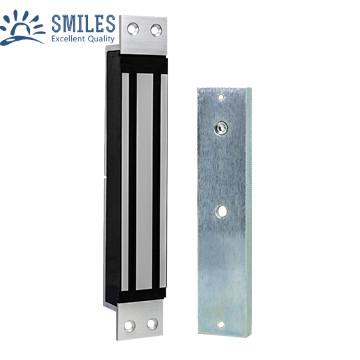

800LBS/350KG Embedded Electric Door Magnetic lock
Specification
Product Name : 800LBS/350KG Embedded Electric Door Magnetic lock
Lock Size: 273Lx44Wx25H(mm)
Armature Plate Dimension: 180Lx45Wx11H(mm)
Holding Force: 350KG(800LBS)
Input Voltage: DC12V (Optional DC24V)
Current: 12V/500mA(±10%) ; 24V/250mA(±10%)
Suitable: Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp: ≤+20℃
Operating Temp: -20℃~+55℃(-4—131°F)
Humidity: 0~90%(non-condensing)
Cover Finish: Anodized aluminum
Lock Finish: Zinc
Armature Plate Finish: Zinc
Unit Weight: 2.5KG
