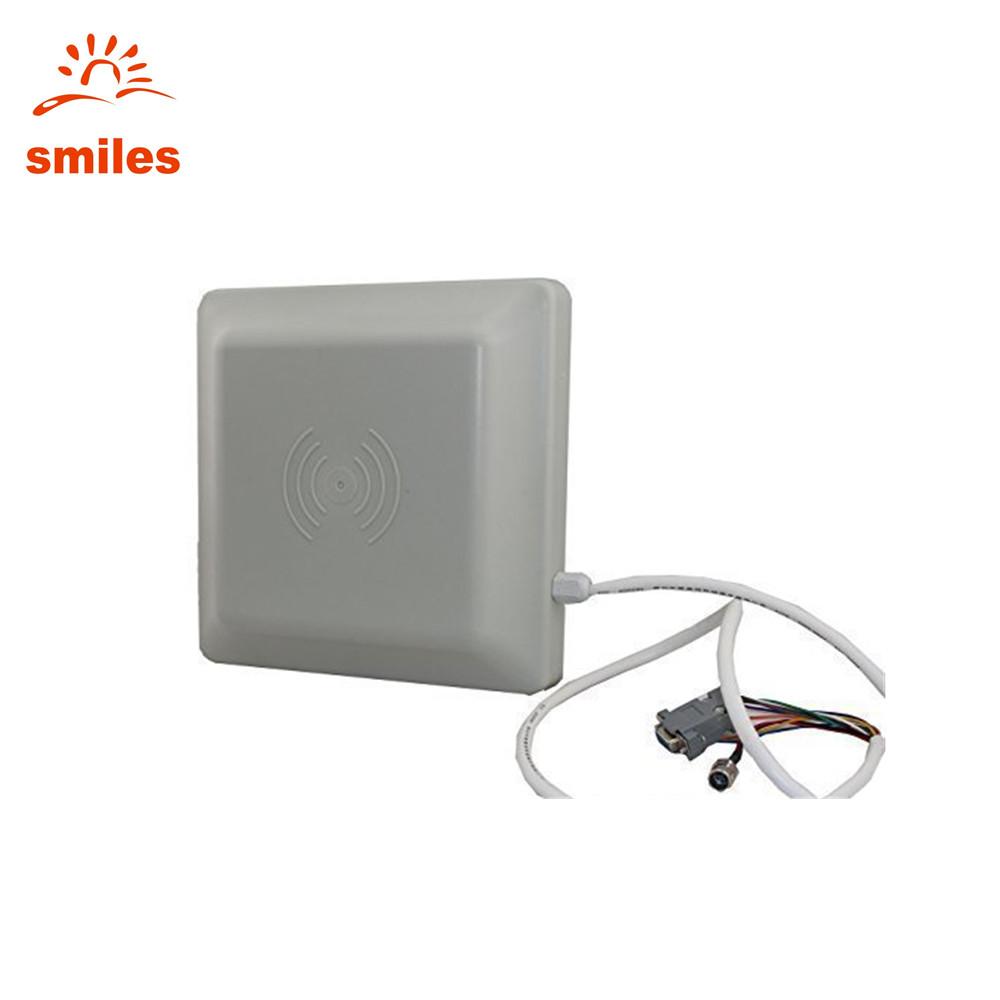

Waterproof 5 Meters 860-868/902-928 UHF Long DistanceRFID Reader With Free SDK and Software
Main Features
Working Frequency: National standard(920~925MHz), America standard (902~928MHz),or customize other frequency
Support Protocol: ISO18000-6B,ISO18000-6C(EPC GEN2)
Frequency Hopping: FHSS or fixed frequency set by software
Working Way: automatically reading card at regular time,can set reading card way.
Frequency Power: 0~30dBm,be adjusted by software
Reading Distance: 1~5M
Reading Sensitivity: dual polarization reading
Reading Speed: one label 64 bit ID number < 6ms
Antenna: build-in circular polarization antenna, gain 8dB /build-in linear polarization antenna,gain 12dBi
Interface: RS485,RS232,Wiegand26,Wiegand34,RJ45
Working Voltage: DC+12V
Working Status Indication: buzzer
Power: 1W
Working Temperature: -20°C ~ +80°C
Storage Temperature: -40°C ~ +125°C
Working Humidity: 20% ~ 95%(no condensing)
Dimension: 227mm× 227mm× 60mm
Specification
Product Name: Long Range Proximity RFID UHF Reader
Frequency: 860-868/902-928MHZ
Reading Distance: 1-5 meters
Reading Speed: one label 64 bit ID number < 6ms
Working Voltage: DC+12V
Working Temperature: -20°C ~ +80°C
