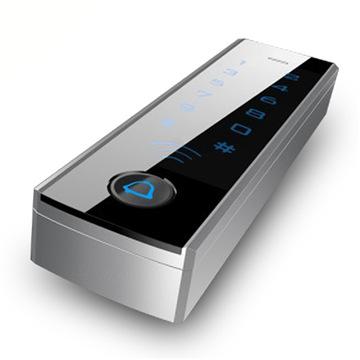

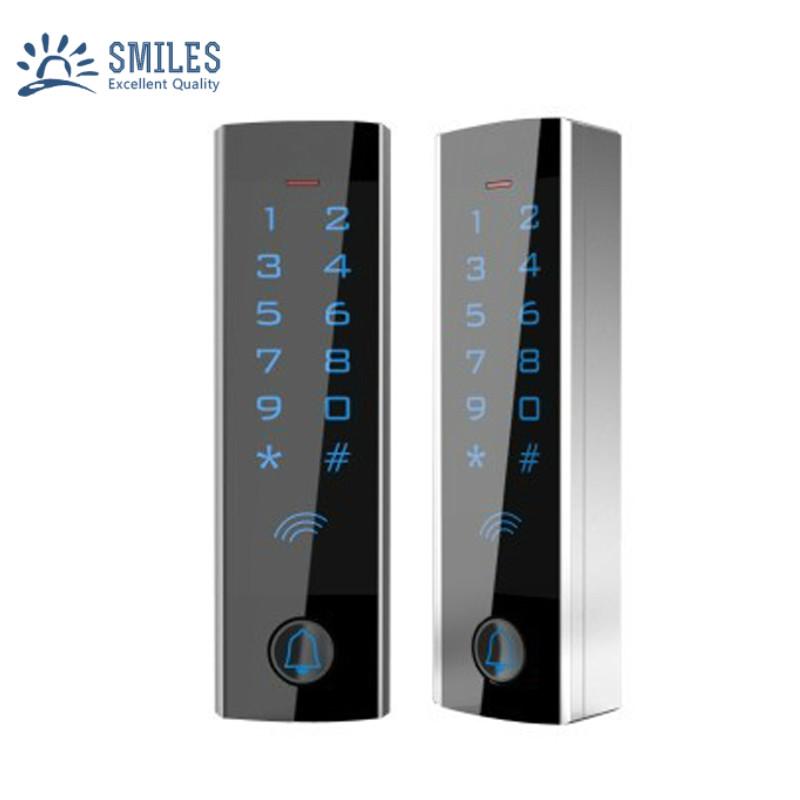

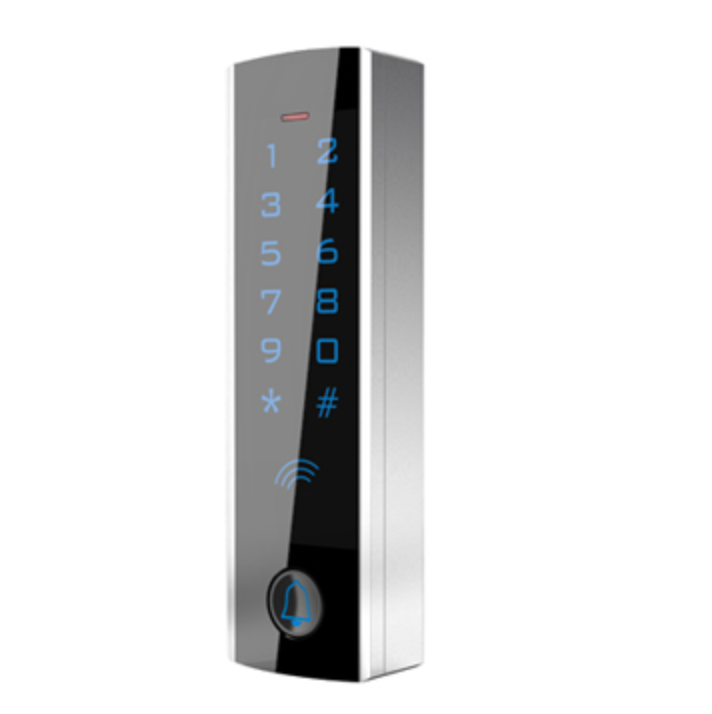

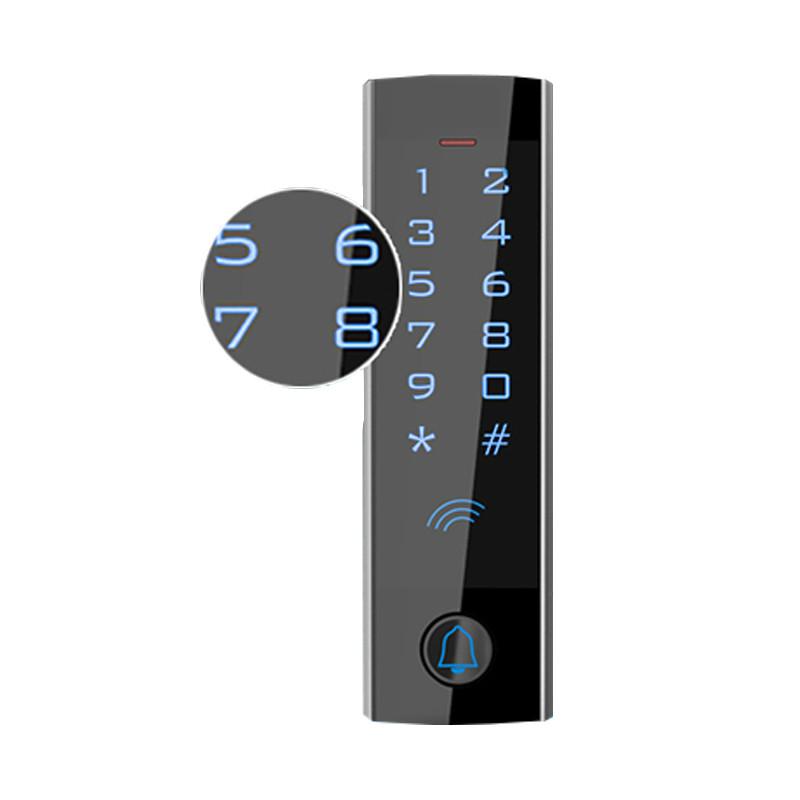

Fashion Touchscreen RFID Access Control Reader/Metal EM or MIFARE Door Keypads
Features
Strong Zinc Alloy Electroplated anti-vandal case
Full programming from the keypad
2000 users,Supports Card, PIN, Card + PIN
Can be used as a stand alone keypad
Backlight keys
Wiegand 26 input for connection to external reader or Wiegand 26 output for connection to a controller
Adjustable door output time,alarm time,door open time
Very low power consumption (30mA)
Fast operationg speed,<20ms with 2000 users
Lock output current short circuit protection
Easy to install and program
Built-in light dependent resistor (LDR) for anti tamper
Buili-in buzzer
Red,yellow and green LEDs display the working status
Specifications
Product Name: Metal Touch screen Standalone Controller
Card type：EM/MF Static electricity: ≤30mA
Working voltage: DC12V±10% Ambient temperature: -45 ℃ ~ 60 ℃
Reading Range: 5-8cm Electric lock output: ≤3A
Humidity: 10% to 90% Short-circuitProtect: ≤100μS
Door Opening Time:0-99s(Adjustable)

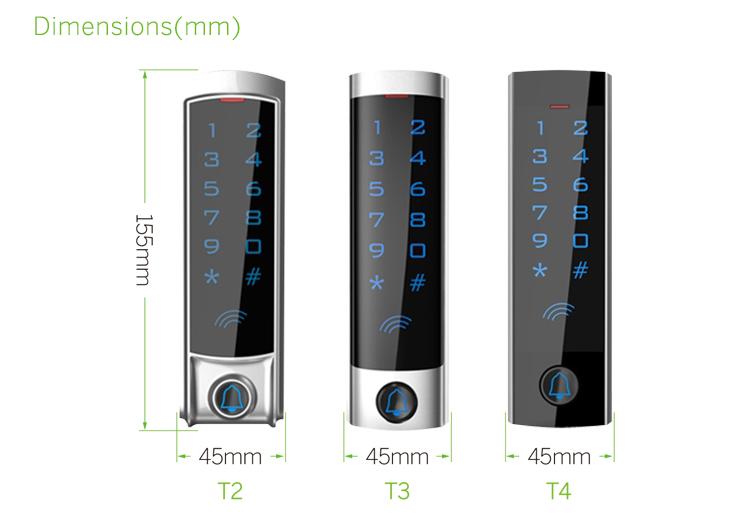

Dimensions: 155*45*20mm
Unit Weight 0.35kg
Standard Package: 54PCS
Carton Weight: 19KG
Carton Size: 55.5*39.9*40(cm)
