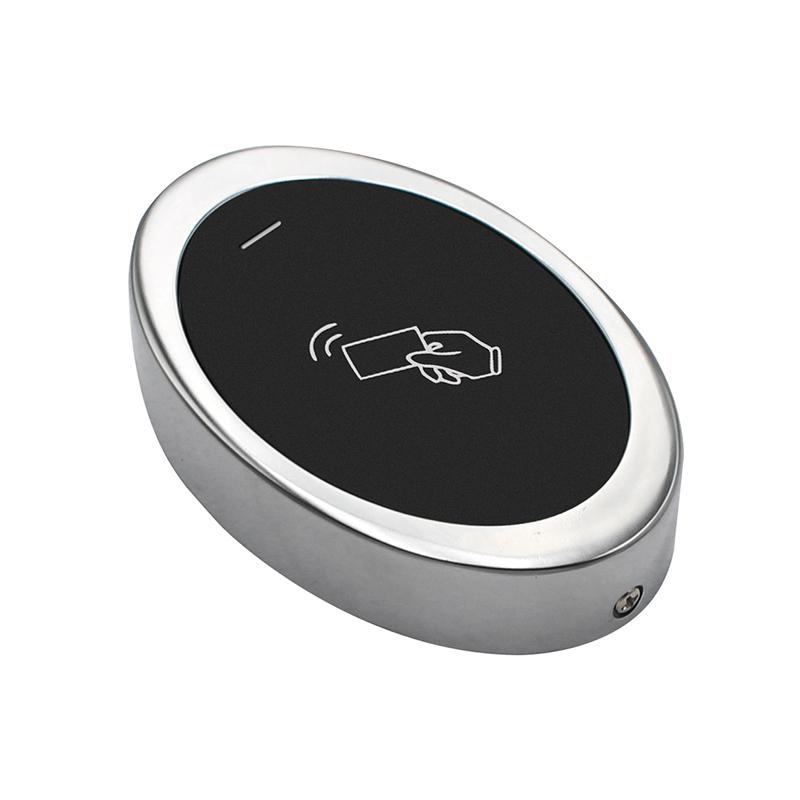

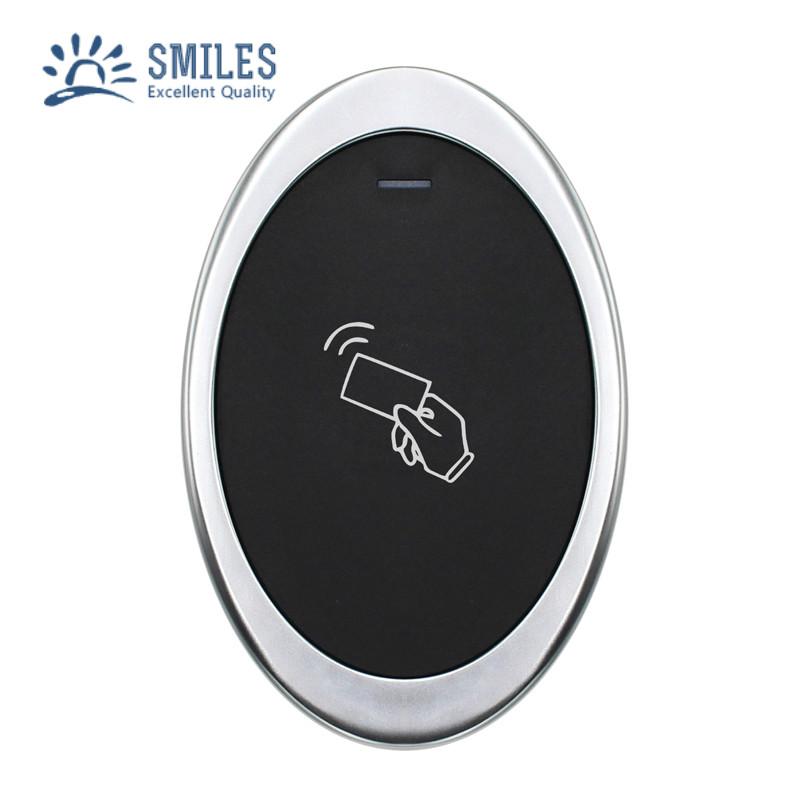

Waterproof Outdoor Standalone Access Control With RFID Card Reader Function
The S8-EM is a compact, waterproof stand-alone programmable mini access control system that
provides proximity entry. The product unique feature is simple in design, easy operation, and high reliability.
Features
> Metal case, anti-vandal
> Waterproof, conforms to IP66
> One relay, 2000 users, standalone
> Card type: 125KHz EM card
> Working temperature: -40 oC ~ 60 oC (-40 oF ~ 140 oF)
> Pulse mode, toggle mode
> Built in LDR for anti tamper
> Card block enrollment
> Mini size: Diameter: 73mm, Thickness: 20mm
Specification
User Capacity: 2000
Card: EM Card
Operating Voltage: 9~24V DC
Idle Current: < 40mA
Proximity Card Reader: EM
Radio Technology: 125KHz
Read Range: 3~10cm
Wiring Connections: Relay output, exit button
Adjustable Relay Output Time: 0-99 Seconds (5 seconds default)
Lock Output Load: 2 Amp Maximum
Relay: One (NO, NC, Common)
Environment: Meets IP66
Operating Temperature: -40 oC ~ 60 oC (-40 oF ~ 140 oF)
Operating Humidity: 20% RH ~ 98% RH
Physical: Zinc Alloy
Dimensions: L105mm x W69mm x H20mm
Unit Weight: 220g
