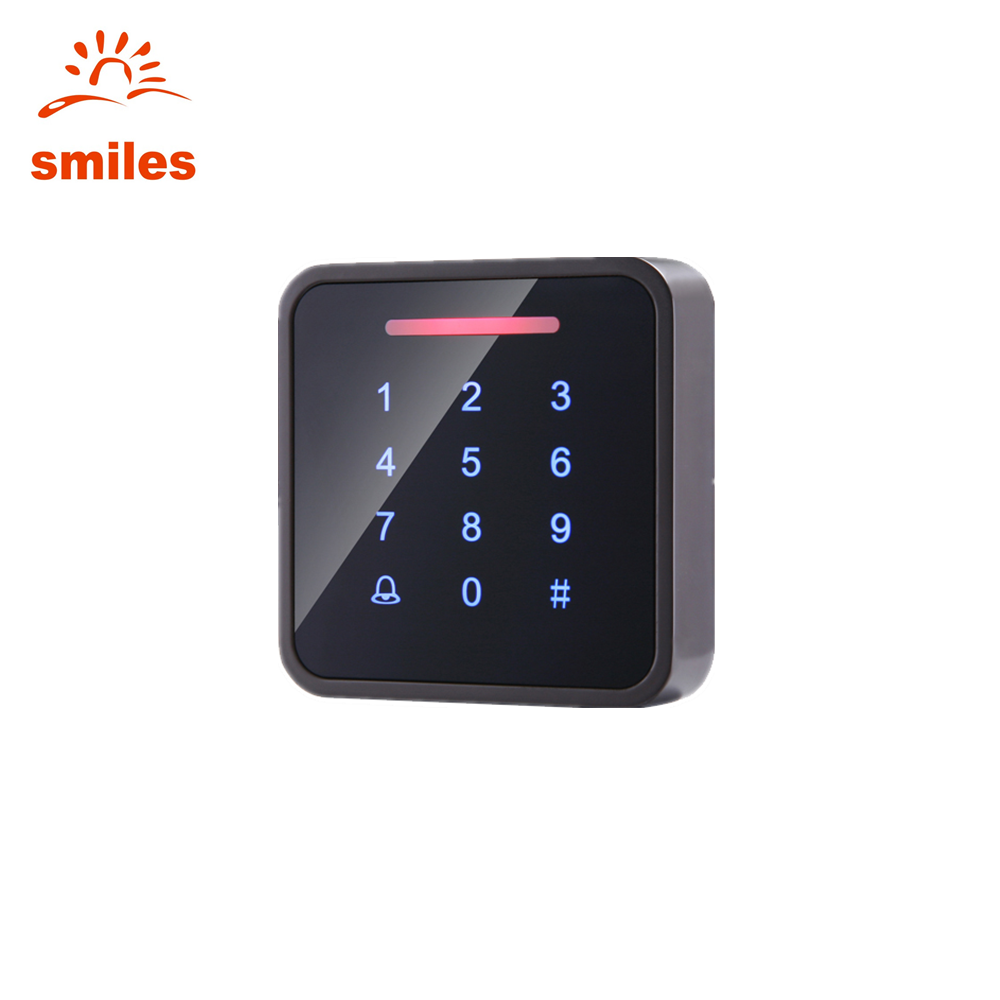

Metal Standalone Touch Door Keypads EM/Mifare Access Control
Features
Strong Zinc Alloy Electroplated anti-vandal case
Full programming from the keypad
3000 users,Supports Card, PIN, Card + PIN
Can be used as a stand alone keypad
Backlight keys
Wiegand 26 input for connection to external reader or Wiegand 26 output for connection to a controller
Adjustable door output time,alarm time,door open time
Very low power consumption (30mA)
Fast operationg speed,<20ms with 3000 users
Lock output current short circuit protection
Easy to install and program
Built-in light dependent resistor (LDR) for anti tamper
Buili-in buzzer
Red,yellow and green LEDs display the working status
|
Specification
|
|
Product Name
|
125khz/13.56mhz access control system
|
|
User Capacity
|
3000
|
|
Card Reading Distance
|
5~8cm
|
|
Current
|
<30mA (Standby); <60mA (Active)
|
|
Wiegand Interface
|
Wiegand 26 bit
|
|
Size
|
78.7*78.7*18.6 (mm)
|
