Aluminium Alloy Contactless Door Release Exit Switch Support Range Adjust
Specification
Product Name: Infrared Sensor Exit Button
Material: Aluminium Alloy

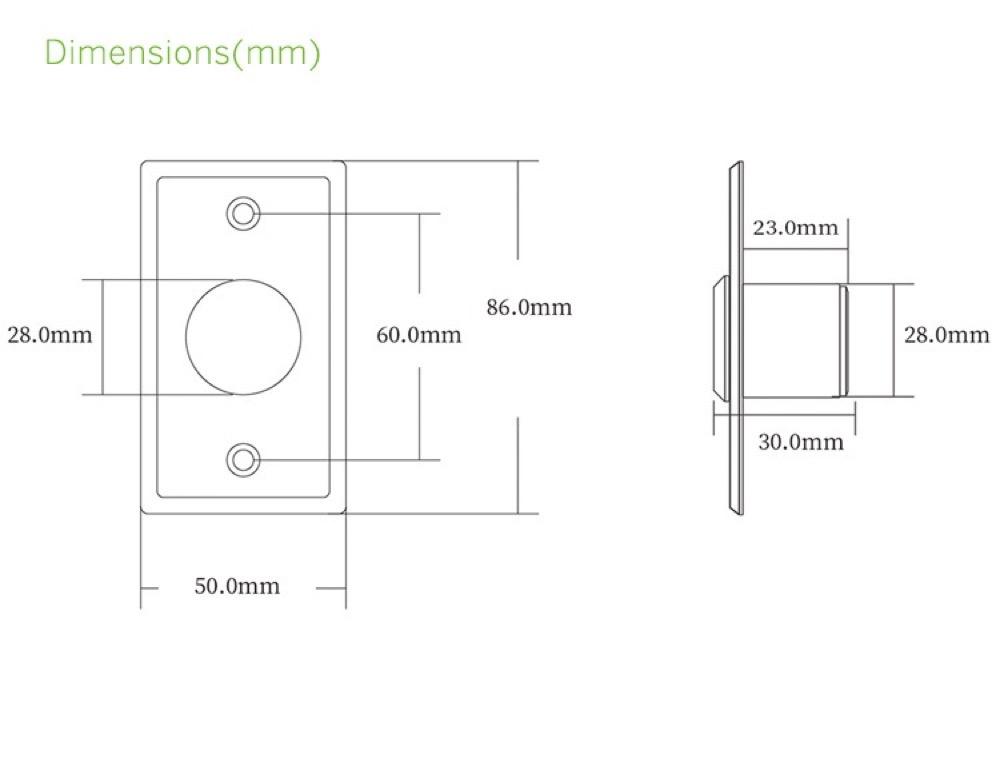

Dimensions: 86Lx50Wx25H(mm)
Contact Rating: 12-24V,3A
Power: 12VDC & 24VDC
Sensor distance: 5-10CM
Output: NO/NC/COM/+12/GND
Mechanical Life: 500,000 Tested
Operating Temp: -20℃~+55℃(14-131F)
Operating Humidity: 0-95%(relative humidity)
LED Indicator: Blue LED Indicator (Standby), Green LED Indicator (Sensation)
Suitable for Door: Hollow Door
Unit Weight: 0.082KG
Standard Package: 100PCS/carton
Carton Weight: 10KG
Carton Size: 50*45*24cm
