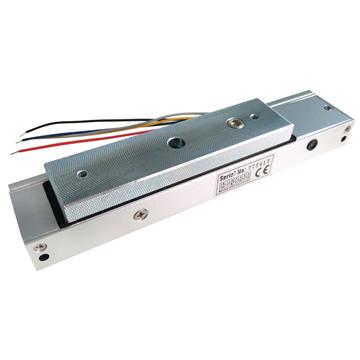

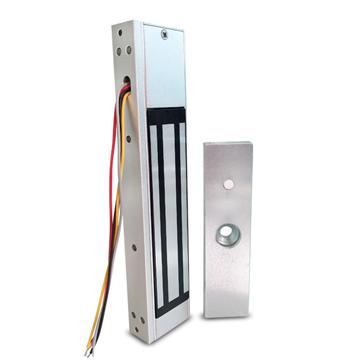

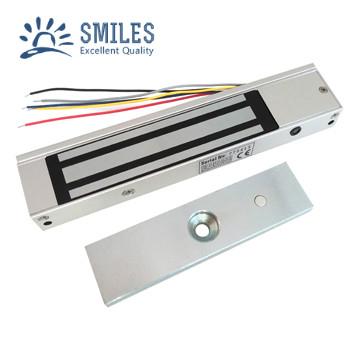

350LBS/180KG 5 Wires Single Door Electric Magnetic Lock With LED and Lock Sensor
Specifications
Product Name: 180KG Single Door Magnetic Lock With LED and Lock Sensor

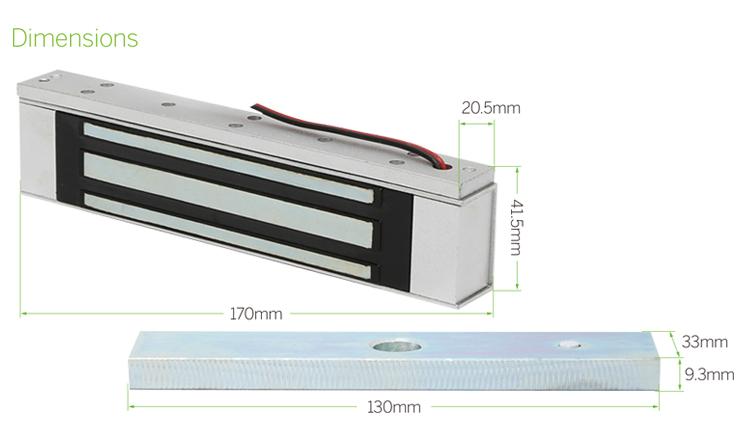

Lock Size: 170Lx41.5Wx20.5H(mm)
Armature Plate Dimension: 130Lx33Wx9.3H(mm)
Holding Force: 180KG(350LBS)
Input Voltage: DC12V (Option DC24V)
Current: 12V/400mA(±10%)；24V/200mA(±10%)
Suitable: Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp ≤+20℃
Operating Temp: -20℃~+55℃(-4—131°F)
Humidity: 0~90%(non-condensing)
Cover Finish: Anodized aluminum
Lock Finish: Zinc
Armature Plate Finish: Zinc
Unit Weight: 1.02KG
