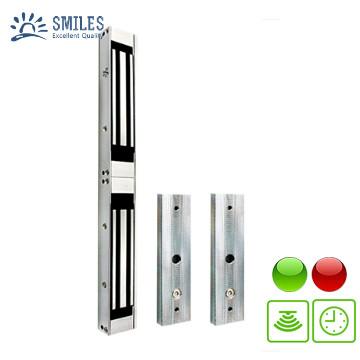

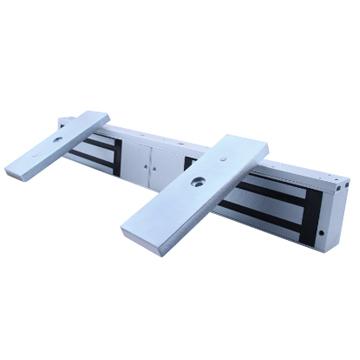

12V/24V Double Door Electromagnetic Lock With Time Delay,LED,Lock Sensor
Specification
Product Name: 1200LBS Double Door Electric Magnetic Lock With Time Delay,LED,Lock Sensor

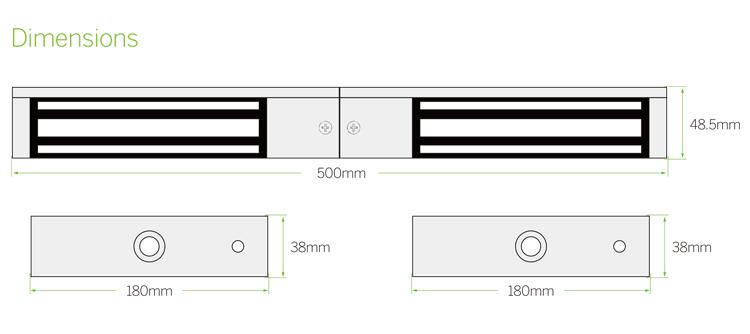

Size: 500Lx48.5Wx25H(mm)
Armature Plate Dimension: 180Lx38Wx11H(mm)*2
Holding Force: 1200lbs
Input Voltage: DC12V (Adjustable DC24V)
Current: 12V/500mA(±10%) ; 24V/250mA(±10%)
Suitable: Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp: ≤+20℃
Operating Temp: -20℃~+55℃(-4—131°F)
Humidity: 0~90%(non-condensing)
Weight 4KG
