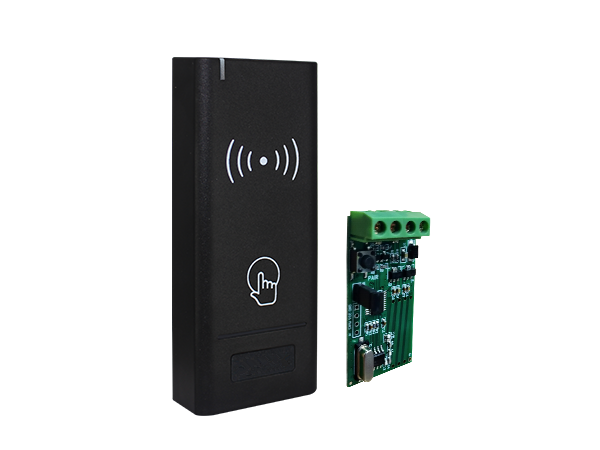

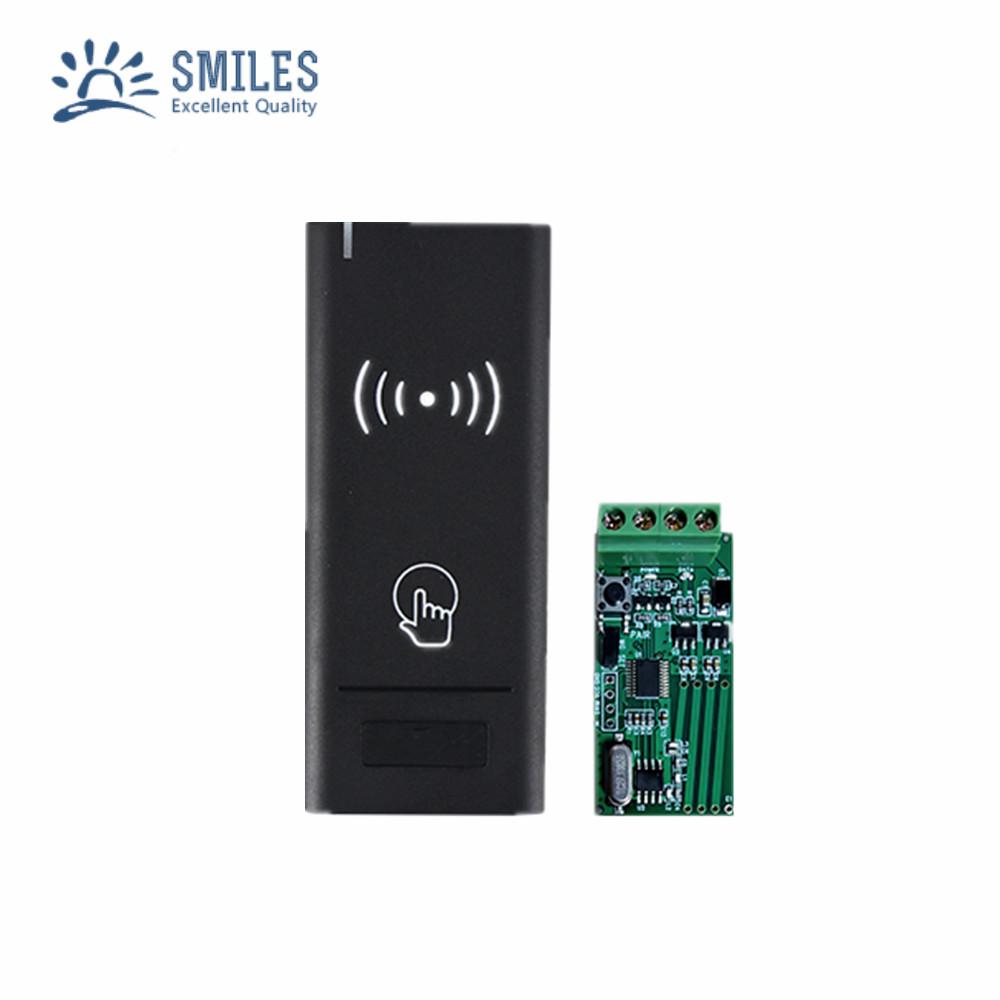

Waterproof 433mhz Wireless Card Reader and Receiver Wiegand 26~37bits Support 13.56mhz Card
Specification
Wireless Reader
Card Type: 13.56MHz MF card

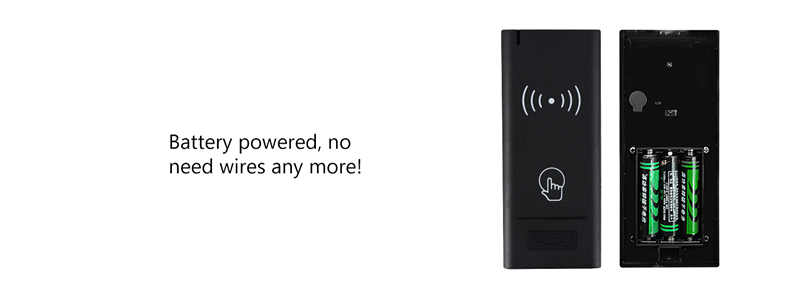

Operating Voltage: 3 units of AAA batteries
Idle Current: ≤5uA
Working Current : ≤35mA
Reading Distance: ≤3cm
Communication Frequency: 433MHz
Communication Distance: 30m Maximum
Operating Temperature: -20°C~+60°C (-4°F~+140°F)
Operating Humidity: 0%~86%
Index of Protection: IP65
Color: Black, White optional
Dimensions: L120 * W50 * H20 (mm)
Net Weight: 88g
Receiver
Operating Voltage: 12V DC
Working Current: ≤15mA
Communication Frequency: 433MHz

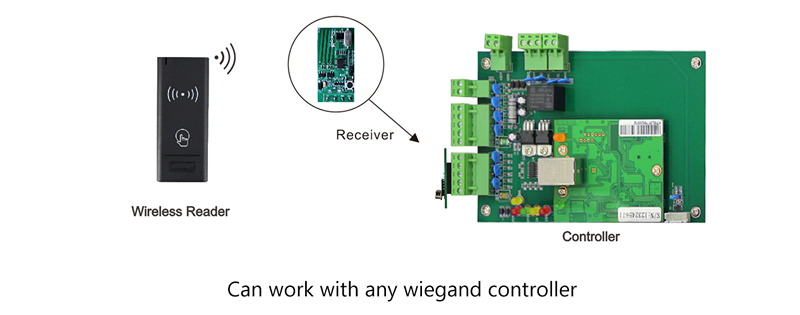

Wiegand Output Format: 26 bits Or 34 bits (Default is 26 bits)
Operating Temperature: -20°C~+60°C (-4°F~+140°F)
Operating Humidity: 0%~86%
Dimensions: L25 * W50 (mm)
Net Weight: 10g
