Waterproof Metal Three in One Powerful Wiegand RFID Card Reader EM/Mifare/HID Anti Collision
The X1-RX is an IK10 certified reader, it is powerful in card reading type, can read 125KHz Hid & EM cards, 13.56MHz Mifare cards at the same time.
Because of metal case anti-vandal and waterproof, it can be mounted either indoor or outdoor in harsh environment
Features
1. IK10 anti collision
2. Metal Case, anti-vandal
3. Waterproof, conforms to IP66

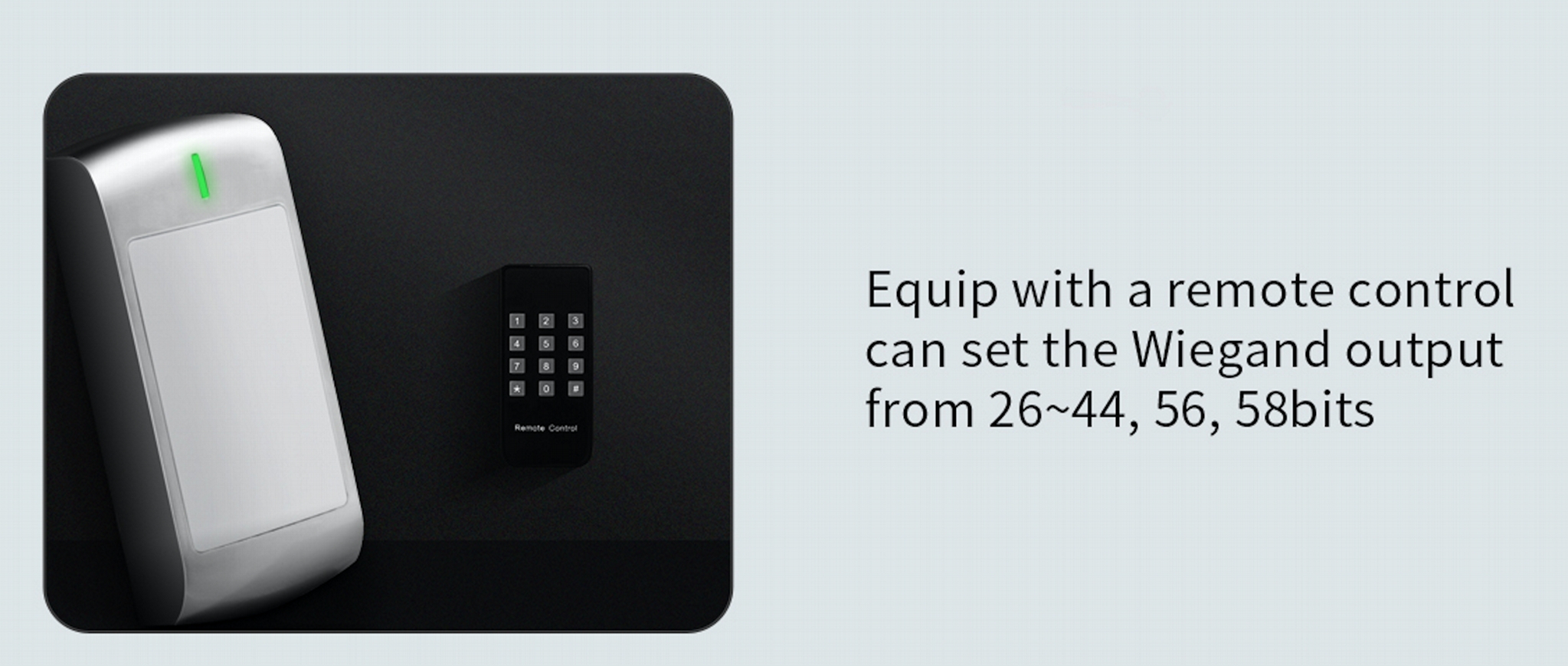

4. Wiegand 26~44, 56, 58 bits output
5. Card Type: 125KHz Hid & EM cards, 13.56MHz NXP Mifare, Mifare Plus, DesFire, Mifare Pro,Mifare UltraLight, Mifare Class 4K cards
6. Reading range: 3~8cm
7. External LED Control & External Buzzer Control
Specification
|
Operating Voltage
|
9~24V DC
|
|
Frequency
|
125KHz & 13.56MHz
|
|

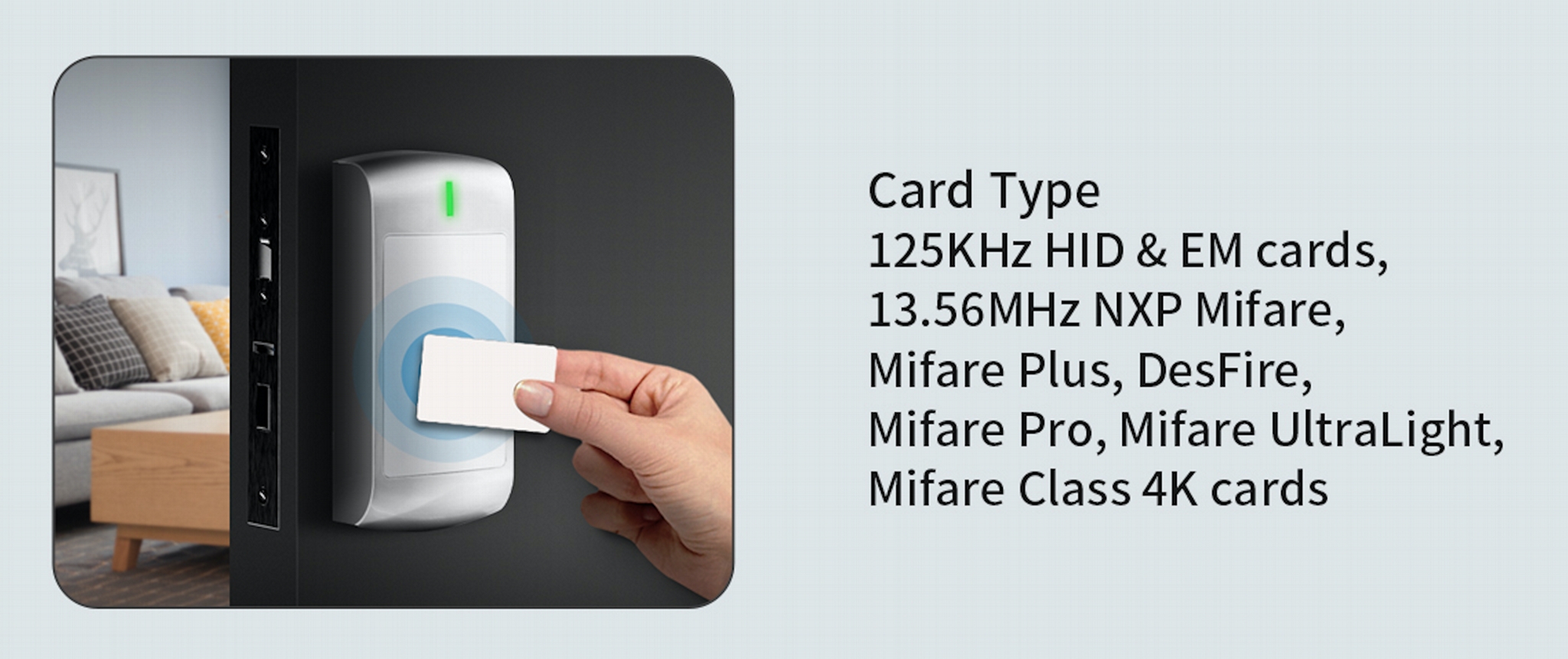

Card Type
|
125KHz - EM & Hid Card
13.56MHz - NXP Mifare, Mifare Plus, DesFire, Mifare Pro, Mifare UltraLight, Mifare Class 4K cards
|
|
Reading Distance
|
2~6 CM
|
| Output Format |
Wiegand 26~44, 56, 58 bits |
|
Operating Temperature
|
-40 °C ~ 60 °C (-40 °F ~ 140 °F)
|
|
Standby Current
|
< 25mA
|
|
Operating Humidity
|
10%~98% RH
|
|
Index of Protection
|
IK10 & IP66
|
|

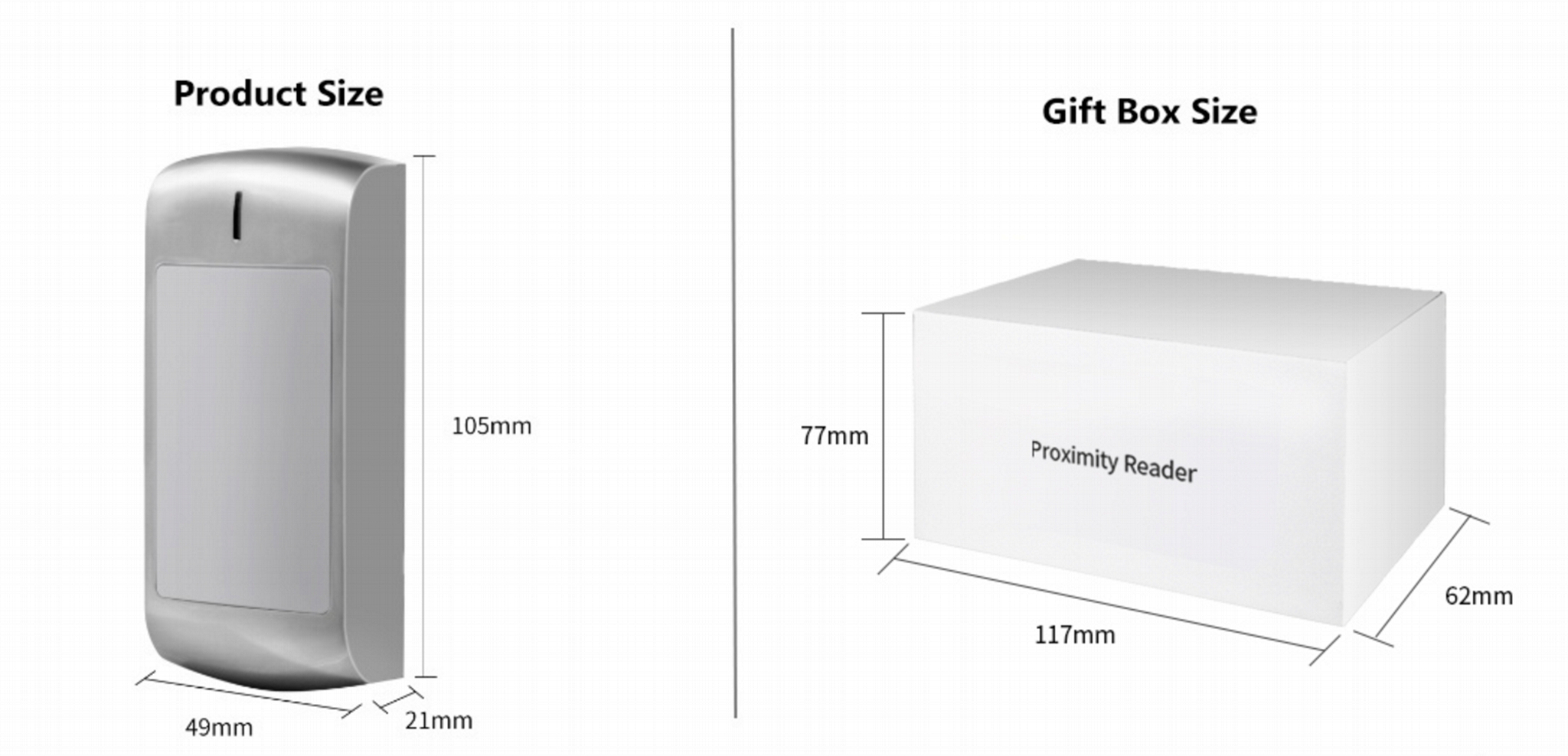

Dimensions
|
L105 x W49 x H21 (mm)
|
| Net Weight |
240g |
| Shipping Weight |
270g |
