Product Description

Waterproof Remote Control Wiegand RFID Access Control for Door/Elevator Use

Features

Waterproof, conform to IP66

Read 125KHz EM&HID card

One programmable relay operation

Pulse mode, Latch mode

Remote infrared programmer

2000 users

Card block enrolment

Tri-colour LED status display

Built in light dependent resistor (LDR) for anti tamper

Buzzer for audible or silent mode

Low temperature resistance(-40℃)

Wiring

Colour Function Notes

Red Power + 9~18 Votes DC Regulated Power Input

Black GND Ground

White NO Normally Open Relay Output

Brown COM Common Connection for Relay Output

Green NC Normally closed Relay Output

Yellow OPEN Request to Exit input(REX)

Installation

Remove the back cover from the unit

Drill 2 holes(A,C) on the wall for the screws and one hole for the cable

Knock the supplied rubber bungs to the screw holes(A,C)

Fix the back cover firmly on the wall with 4 flat head screws

Thread the cable through the cable hole(B)

Attach the unit to the back cover

Payment Terms︰ T/T, Western Union, Money Gram, Paypal

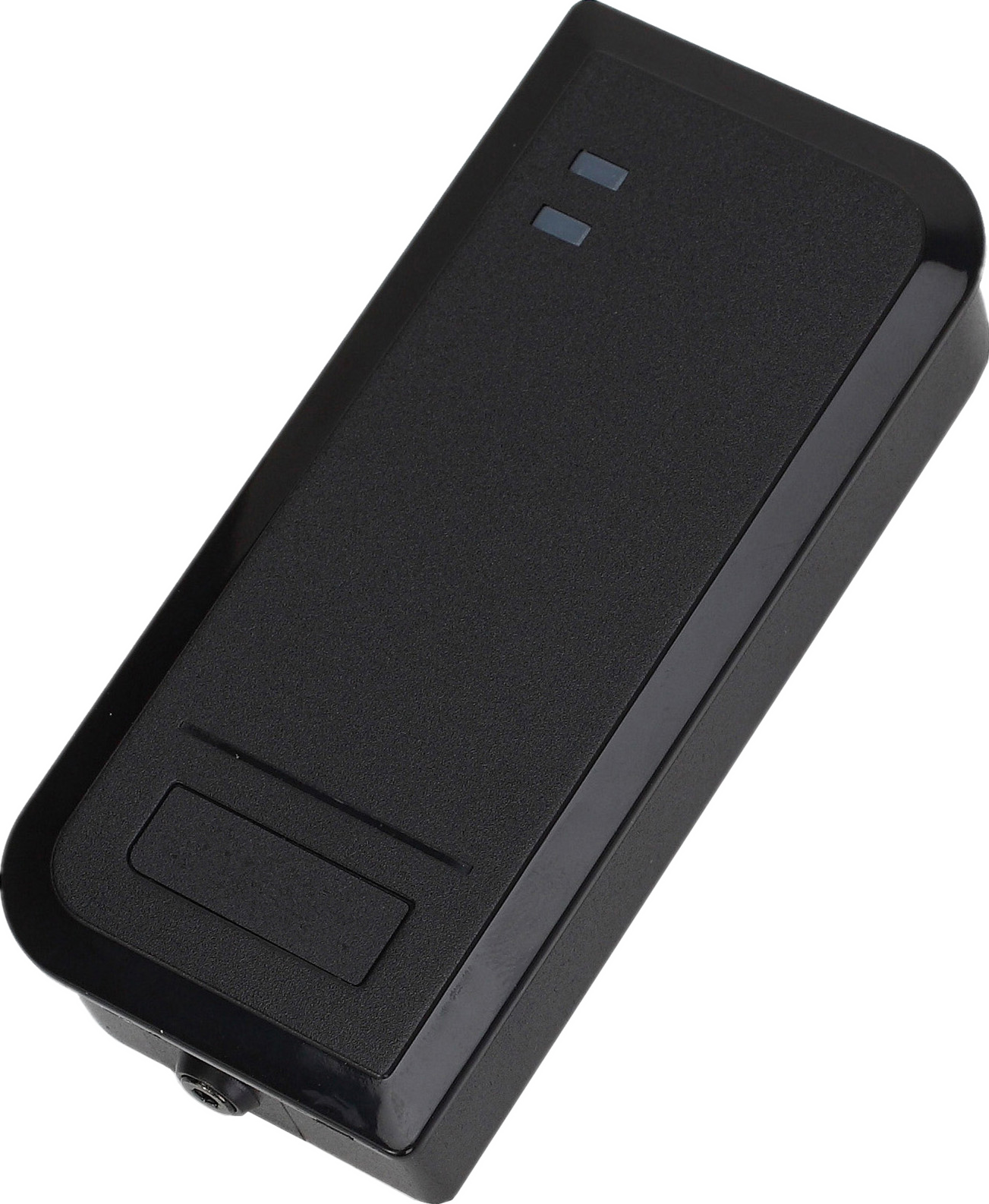

Product Image
