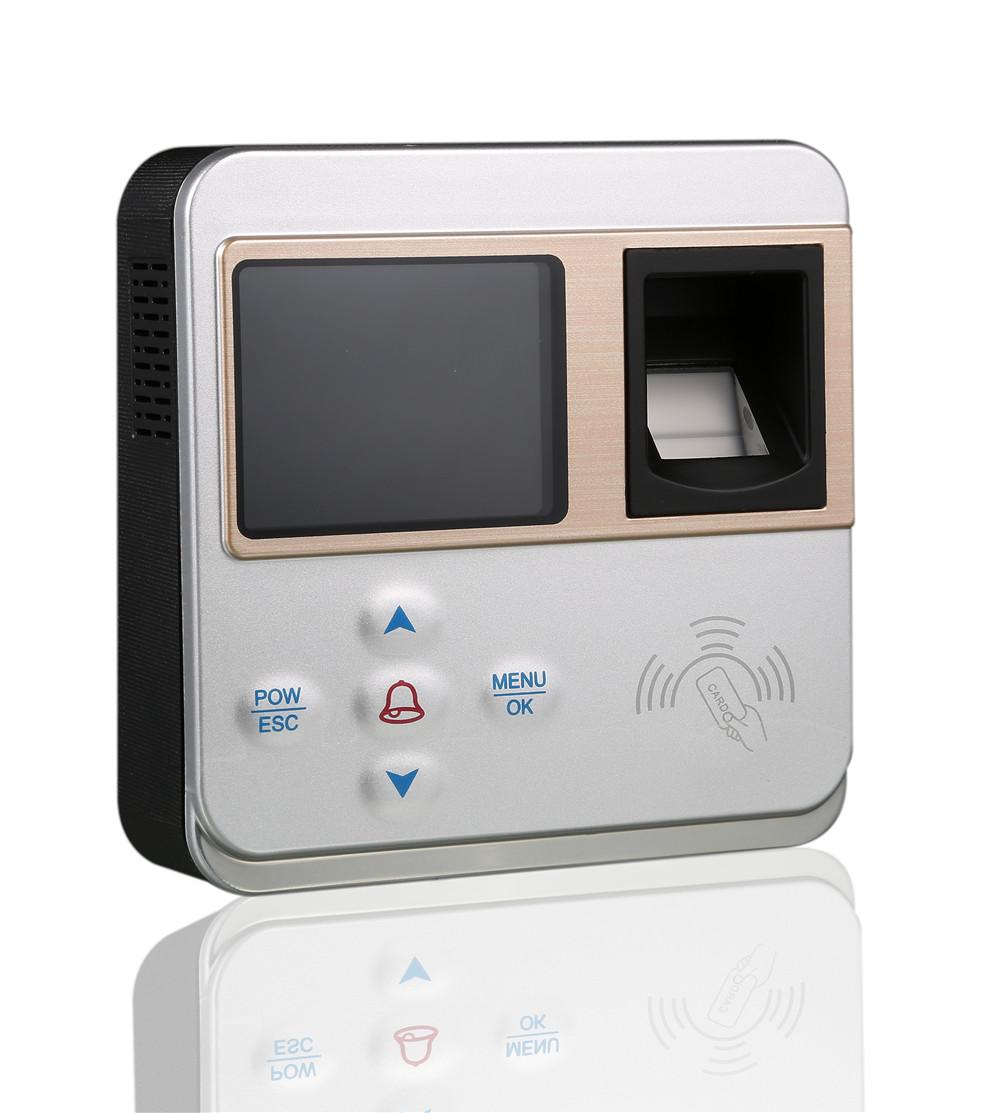

Professional TCP IP/RS485/USB Fingerprint Time Attendance
Features
1. professional fingerprint access control with time attendance function
2. 2.4inch TFT screen
3. Can enroll Max=10 fingerprint to 1 user
4. Stores 800 templates and 50,000 transactions
5. Support Fingerprint/RFID verification
6. Built-in Serial and Ethernet ports
7. Support Wiegand26/34
8. Optional function: MIFARE CARD function
9. SDK for OEM customers
Specification
Fingerprint Capacity: 800
Communication: TCP/IP, RS485, USB Memory Disk
Authentication Method: Fingerprint/ RFID Card (125Khz)/Password
Fingerprint Sensor: 500DPI (Optical)
Language: English / Spanish/Portuguese/ German (could customize others)
Transaction Capacity: 50,000
Push Technology (UDP): Device Pushes real-time attendance record to the RAMS Software automatically, including the offline records.
Display: 2.4inch TFT Screen
Bell: Built-in Timing Bell (Scheduled-bell, can connect to external timing bell)
Access Control Interface: Wiegand26/34, Door Lock, Siren, Release Button, Doorbell, Door Sensor
Professional access function: Open door by multilevel verification, anti-pass back
Power Supply: DC 12V/1A
Terminal Size: 180(L)*134(W)*36(H)mm
