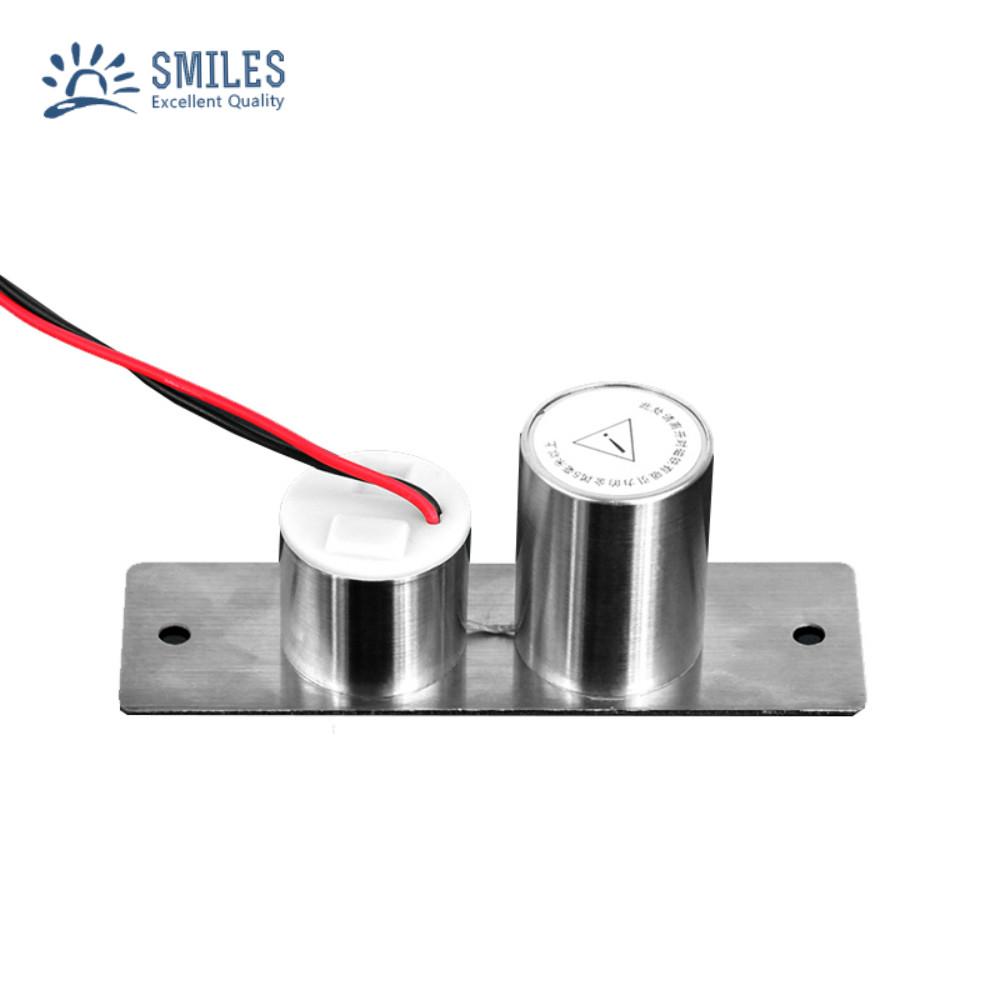

Concealed Install Mini Electric Dropbolt Door Lock with Door Sensor Low Temperature
Features
1. Fail safe operation
2. Tested to 500000 cycles
3. Low power consumption
4. Reverse current protection PCB
5. Reliable locking mechanism
6. Durable and silence operation
7. Full range of optional brackets
8. Suitable for wooden door,glass door,metal door,fireproof door,etc
Specification
Product Name： Fail-Safe Electric Bolt for Fully Frameless Glass Door
Feature： Fail-safe type (Power to lock)

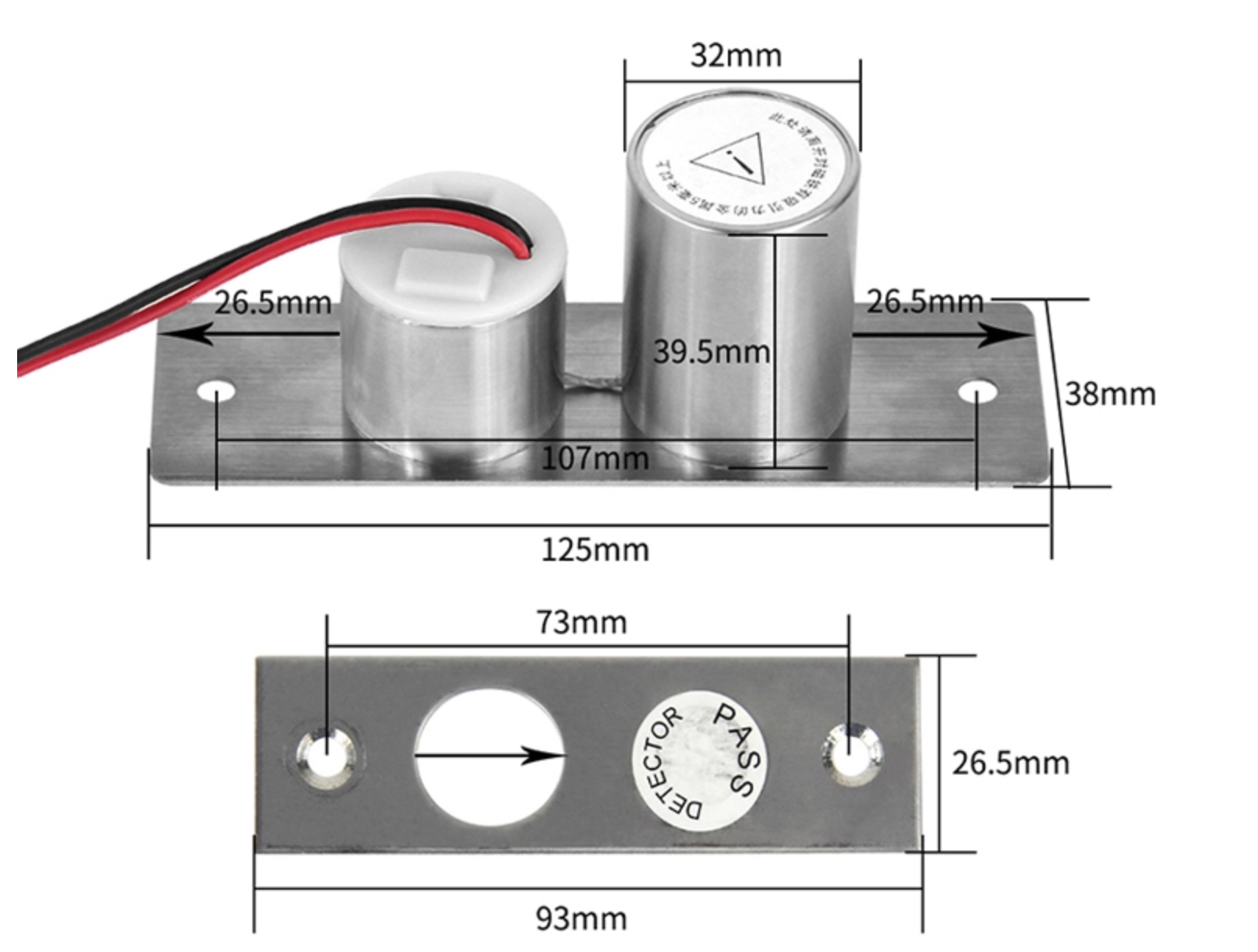

Face Plate： 150Lx40WX37H(mm)
Bolt： 16(length)*13(diameter)(mm)
Voltage： DC12V(DC24V)
Start Current： 960mA
Standby Current： 180mA
Solid Bolt polishing housing, 1000kg Holding Force
Suitable For： 12mm Electric Bolt For Fully Frameless Glass Door
Signal Output Door status： Output,NC/COM
LED： Light on indicates locked, light off indicates unlocked
Surface Temp： Low Temperature
Induction Distance： 8mm
Special Designed： Tested to 500000 operations
Face place material ：Stailess Steel
Weight： 0.75KG
Standard Package： 20PCS
Carton Weight： 14.2KG
Carton Size： 40.5*33*13 (cm)
