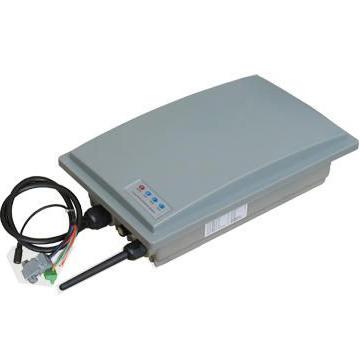

2.4GHz Directional Active Reader/RFID UHF Card Reader Continuous Reading Card
Main Features
The directional long-distance card reader is a RFID directional long-distance card reader that works in the 2.4GHz frequency band and is specially built for material management and vehicle entrance and exit management. This product adds a WiFi antenna to automatically identify the movement direction of the electronic tag. ,Send interlock information in advance, and the locked tag will be automatically unlocked after 10 seconds after leaving the card reading area.
Technical Parameters
1. Dimensions: L115mm*W75mm*H21mm,
2. Power: DC 9~12V
3. Quiescent Current(standby) ≤20mA
4. Dynamic Current(reading cards)≤30mA
5. Frequency: 2.45GHz
6. Reading Distance: 0-120M
7. Output format: standard wiegand (26/36/34/44BIT available) RS232 output;
8. Transmission distance; wiegand≤200M;RS232≤15M;
9. Protective measures: Anti-protect fuse, photovoltaic seclusion protection.
10. storage temperature:-40°C~+85°C
11. operating temperature:-20°C~+60°C
12. Relative humidity: 0 %~90 %
13. PCB 10 % damp-proof treatment
