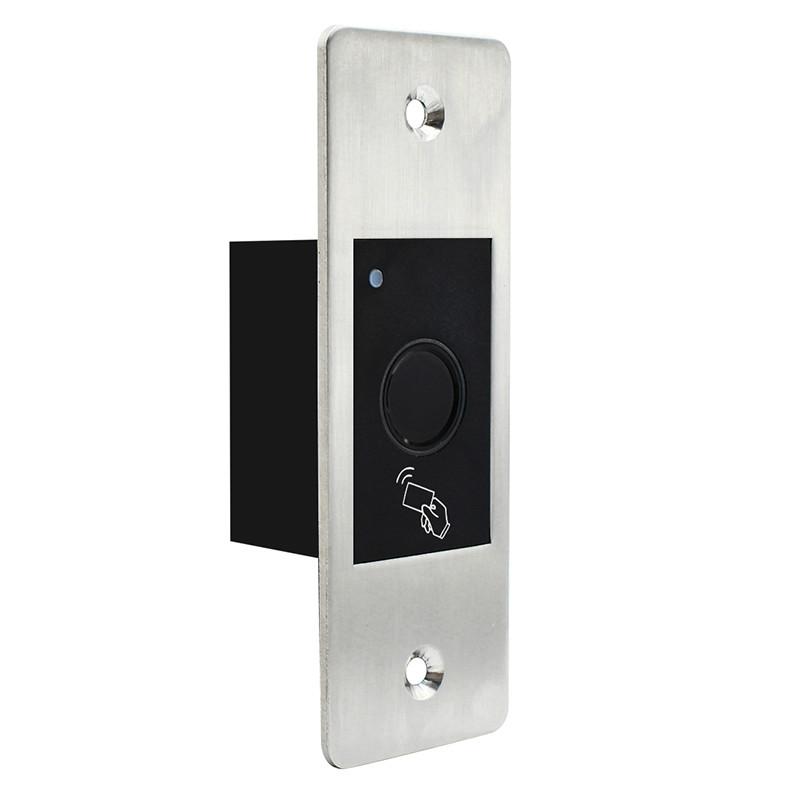

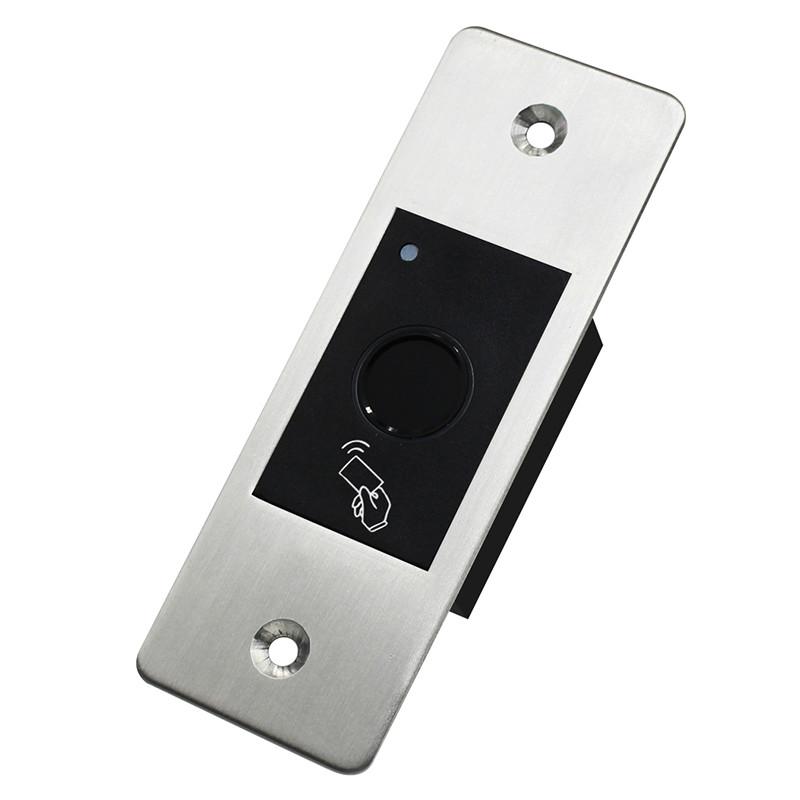

Embedded installation IP66 Fingerprint Access Control For Door/Elevator Project
Features
>Embedded design with mini size
> Metal case and waterproof, conform to lP66
> User capacity: 3000 Cards and 800pcs fingeprints
> Card type: 125KHz EM Card
> One programmable relay operation
> Latch mode to hold door or gate open
> Tri-colour LED status display
Specifications
User Capacity: 3000 Cards
Operating Voltage: DC9~24V
Idle Current: ≤25mA
Active Current: ≤100
Proximity Card Reader: EM/MF
Radio Technology: 125KHz/13.56MHZ Proximity Card
Read Range: 2cm
Wiring Connections: Relay Output, Exit Button
Relay: One (NO, NC, Common)
Adjustable Relay Output Time: o-99 seconds (5 seconds default)
Lock Output Load: 2 Amp Maximum
Environment: Meets lP66
Operating Temperature: -25℃~60℃ (-13°F ~140°F)
Operating Humidity: 20%RH-98%RH
Physical: Zinc-alloy plate
Colour: Silver
Dimensions: L115xW40xH30mm
